DS-2TP31-3AUF - Handheld Thermal Camera











Functions

Thermography

Device detects the real-time temperature, and display it on the screen.

Storage

Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.

Palette

Device supports 4 palettes.

Laser Light Supplement

Long-distance laser light supplement to point the thermography target.





Specifications

Model DS-2TP31-3AUF
Parameter Handheld Thermography Camera



Thermal Module
Image sensor Uncooled Focal Plane Arrays
Max. Resolution 160 × 120
Pixel Pitch 17μm
Response waveband 8μm to 14μm
NETD < 40mK (@ 25 °C,F#=1.0)
Field of View 37.2° × 50 °
Focal length 3.1 mm
IFOV (mrad) 5.48 mrad
Min. Focus Length ≥ 150 mm
Aperture F 1.1



Image Display
Monitor 320 × 240 resolution 2.4’’ LCD display
Palettes Black hot, White hot, Rainbow, Ironbow



Thermography
Rules 3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature
Thermometry Range -20 °C to 550 °C (-4 °F to 1022 °F)
Thermometry Accuracy Max (±2 °C, ±2%)
Thermometry Distance D:S = 75:1



Battery
Battery Type Rechargeable Lithium Battery
Battery Operating Time 8 hours continuous running



Functions
Laser Light Support (Point to the thermography target)
Storage Replaceable memory card (default 8G, support up to 128G storage)
Photo Thermal image
Video N.A.
Language English



General
Power 3.7 V DC/0.4 A
Power Consumption Less than 1.2 W
Hardware Interface micro USB
Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
Protection level IP54
Drop Test Height 2 m (6.56 feet)

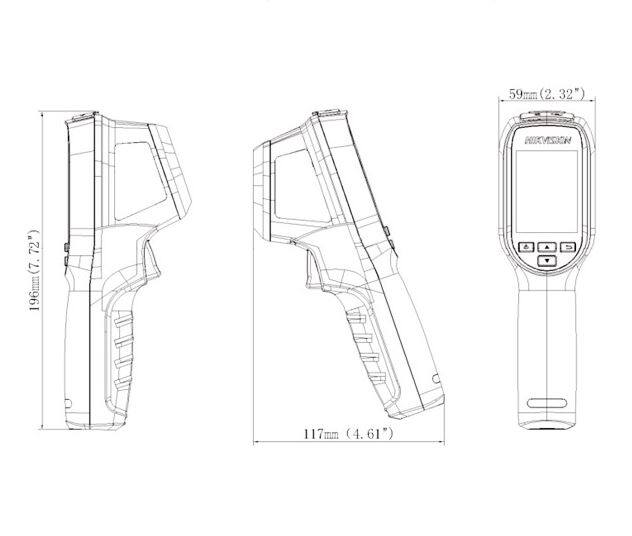

Dimension 196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
Weight Approx. less than 350 g (0.77 lb)
Accessory Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap


Whats in the box

  • 1 xHikvision Handheld Body Temperature Measurement Fever Screening Camera DS-2TP31B-3AUF
  • 1 x User Manual
  • 1 x Disk
  • 1 x USB Cable
  • 1 x Power Adapter
  • 1 x Wrist strap
